- Transport of Ash +
One of the main activity directions of Energo-Mar company is the activity in term of:
• Design of ash and bulk materials transport devices and systems
• Supply of equipment and systems
• Repair, renovation and modernization of devices
The Energo-Mar company offers supply of spare parts, repair and renovationl of ELWO Pszczyna production equipment and other domestic and foreign companies. We also provide equipment, according to our technical solutions.
• Ball valves, gate valves, throttle valves

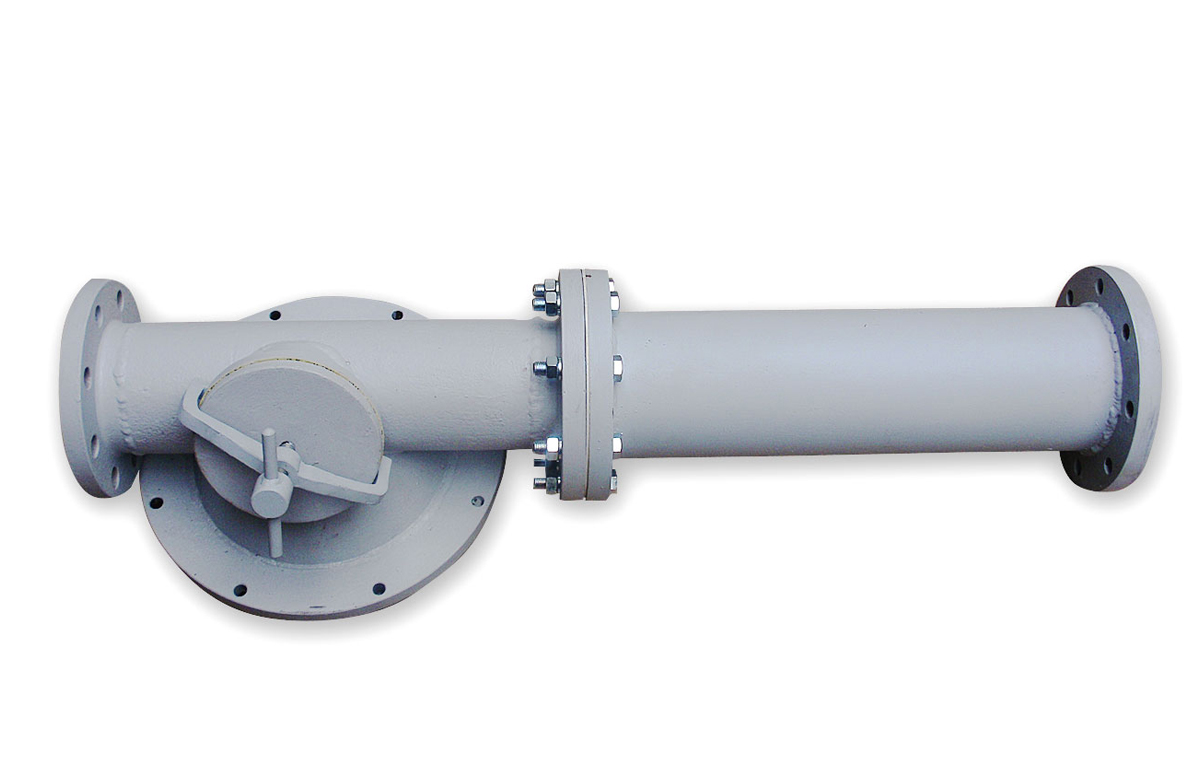

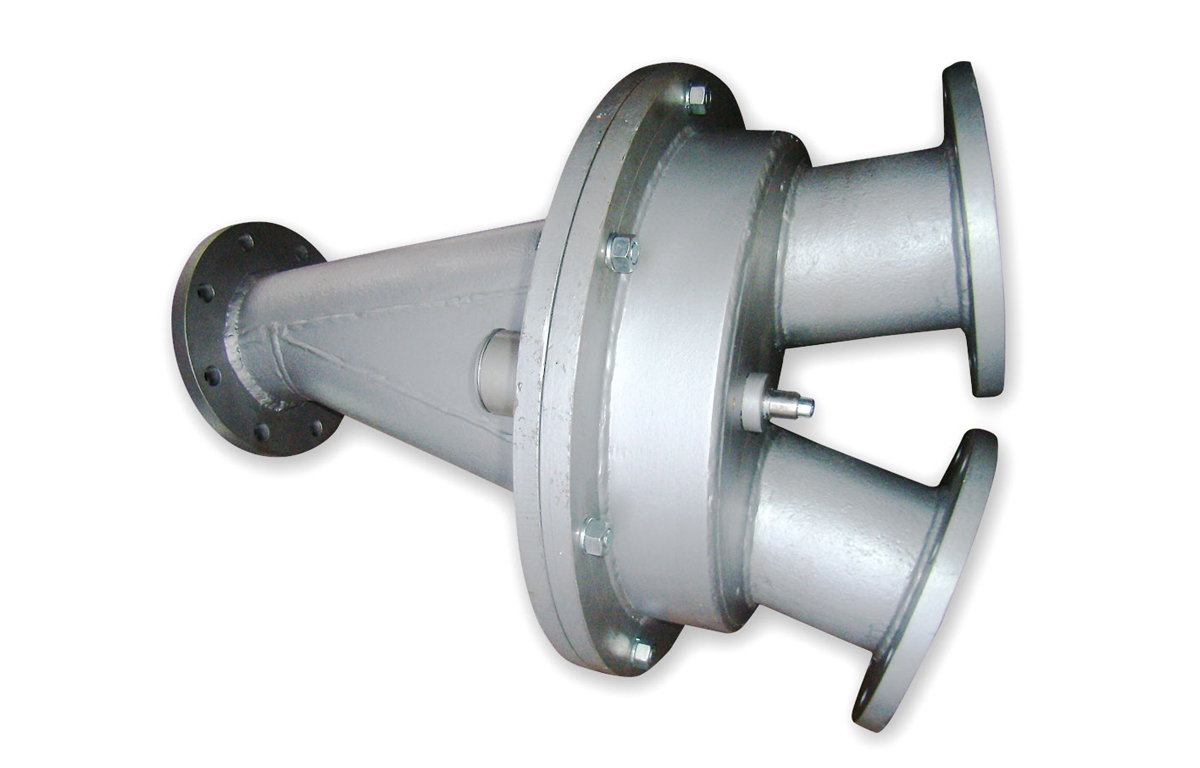

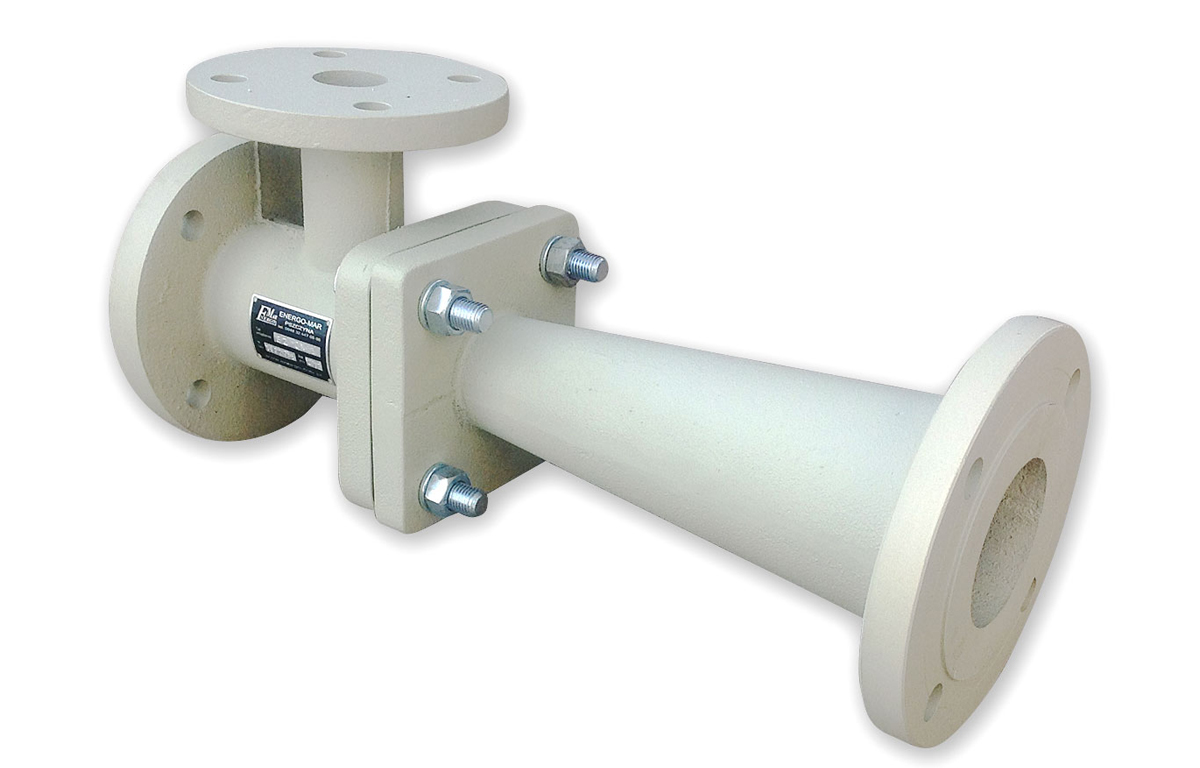

• Ejector and exhaust devices
• Elements of closing bells
• Ash mixers with water

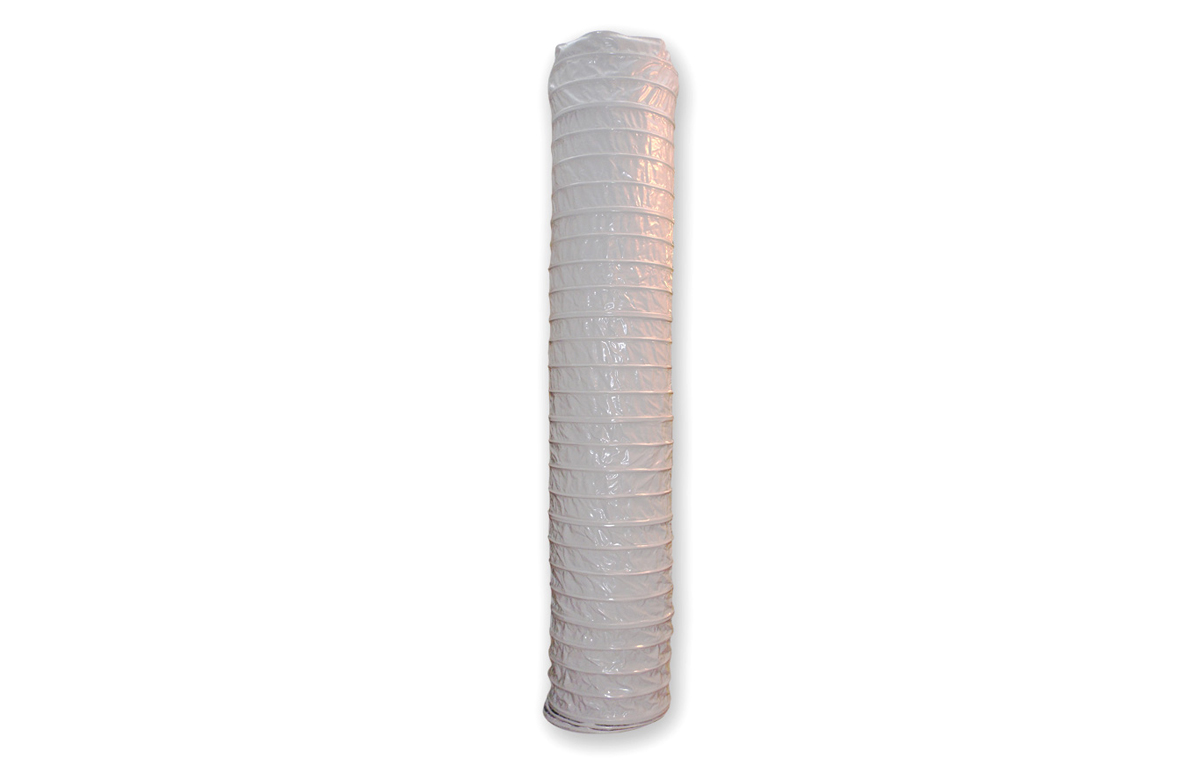

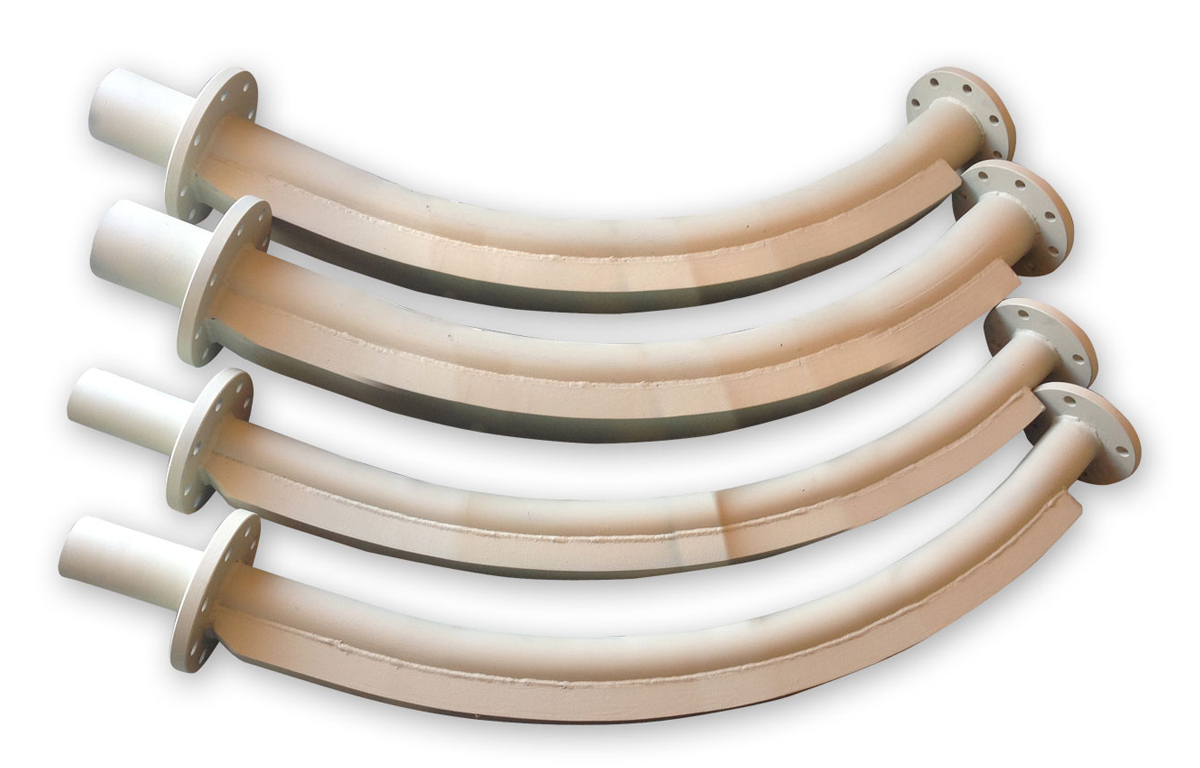

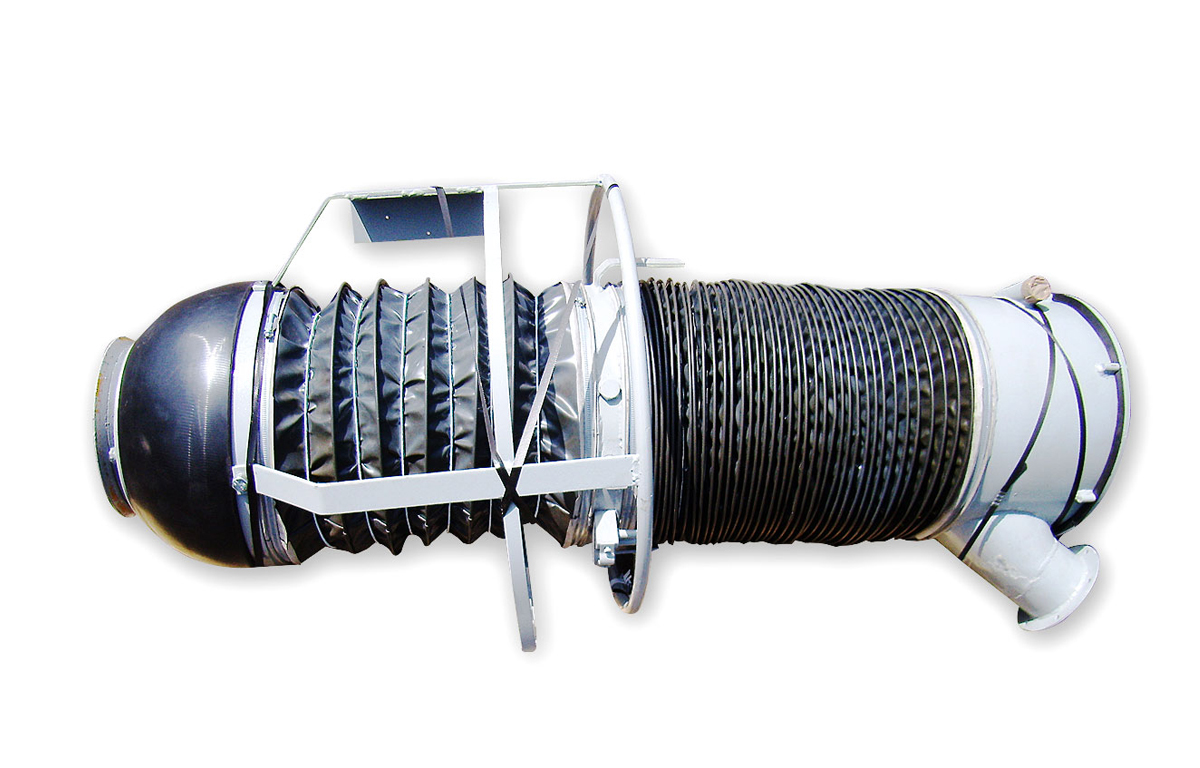

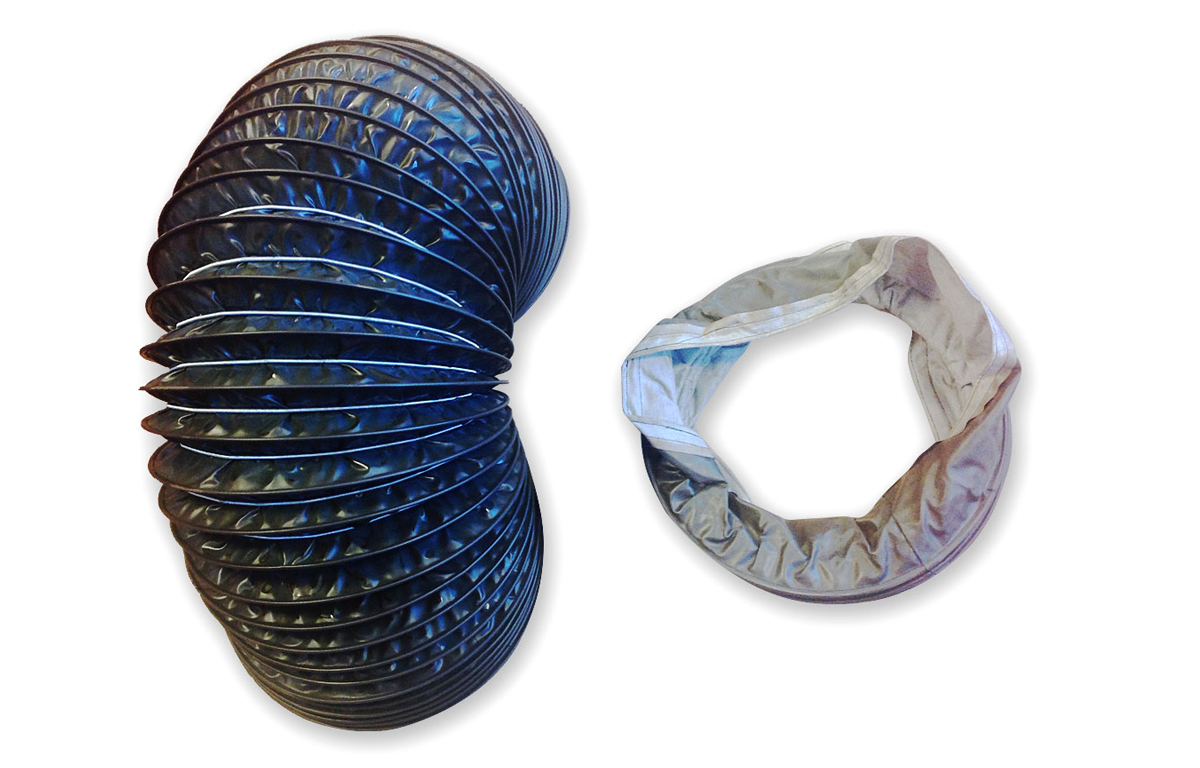

• Loading hoses, chute bags
• Others elements of bulk materials transport as required
In addition, we recommend the service in the modernization of ash transport systems. Additional information may be obtained by contacting our office.
- Aeration and leavening troughs+

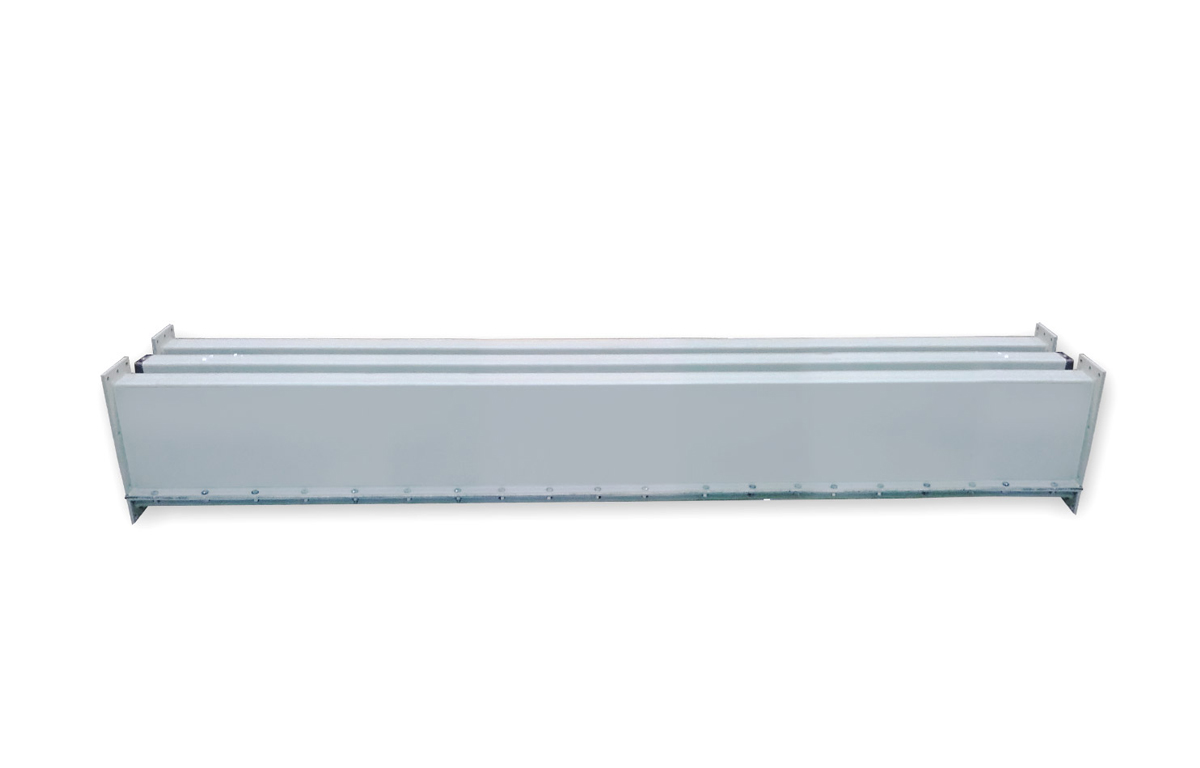

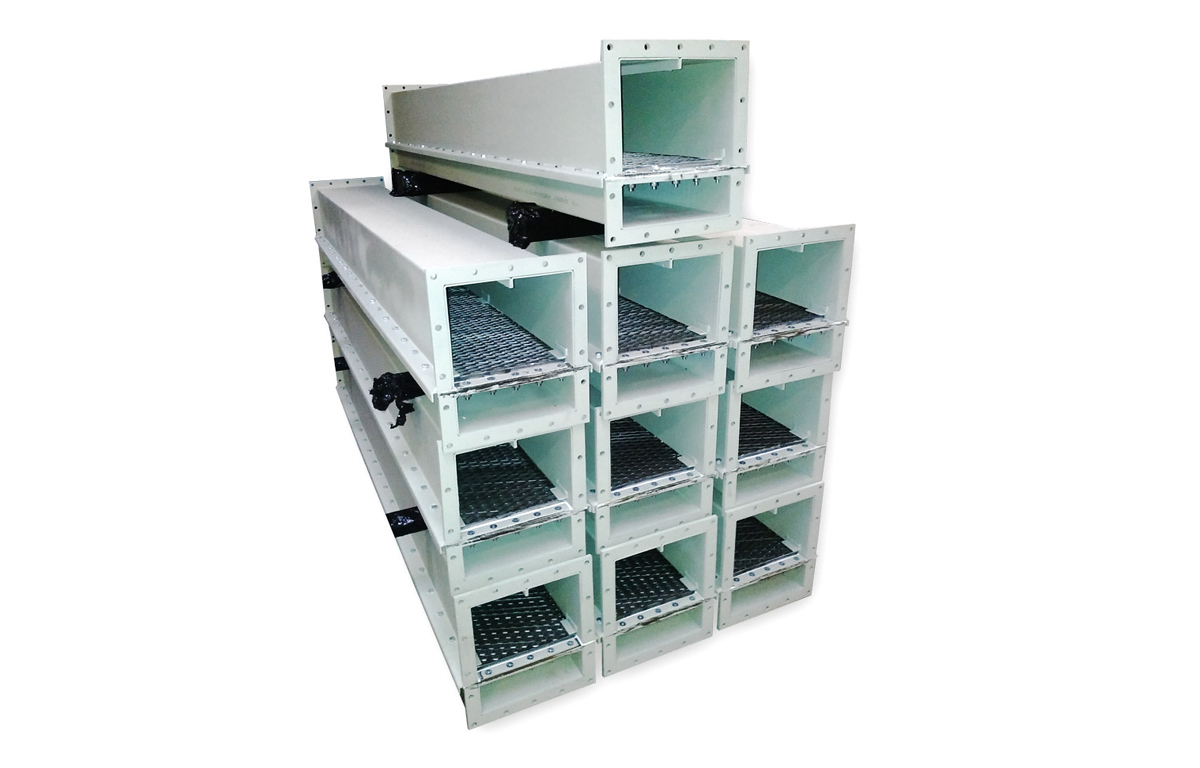

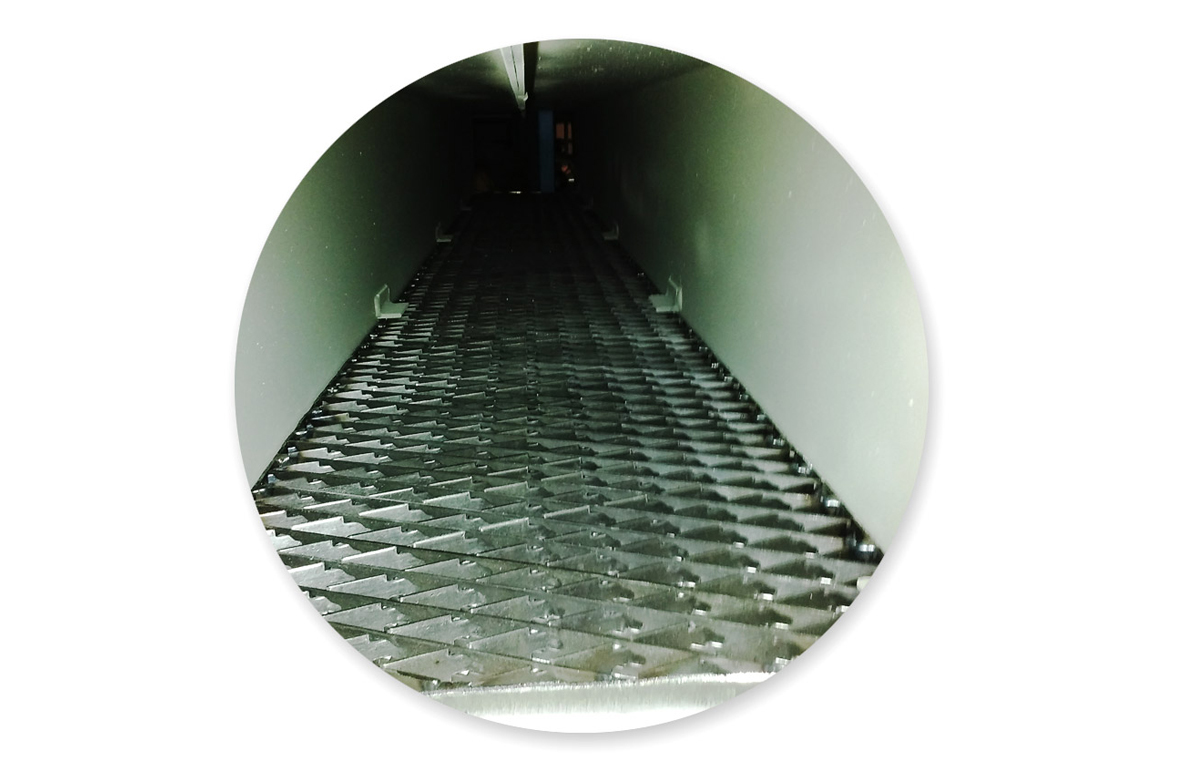

Aeration troughs
with the following parameters:
• Temperature range up to 250oC
• Manufactured sizes:
150, 200, 250, 300, 400, 500
• Used materials:
- all sizes as welded construction using a variety of steel
- as a aeration fabric we use different thicknesses of aramid or polyester fabrics
- as a protection against fabric abrasion we use special design of the steel grating

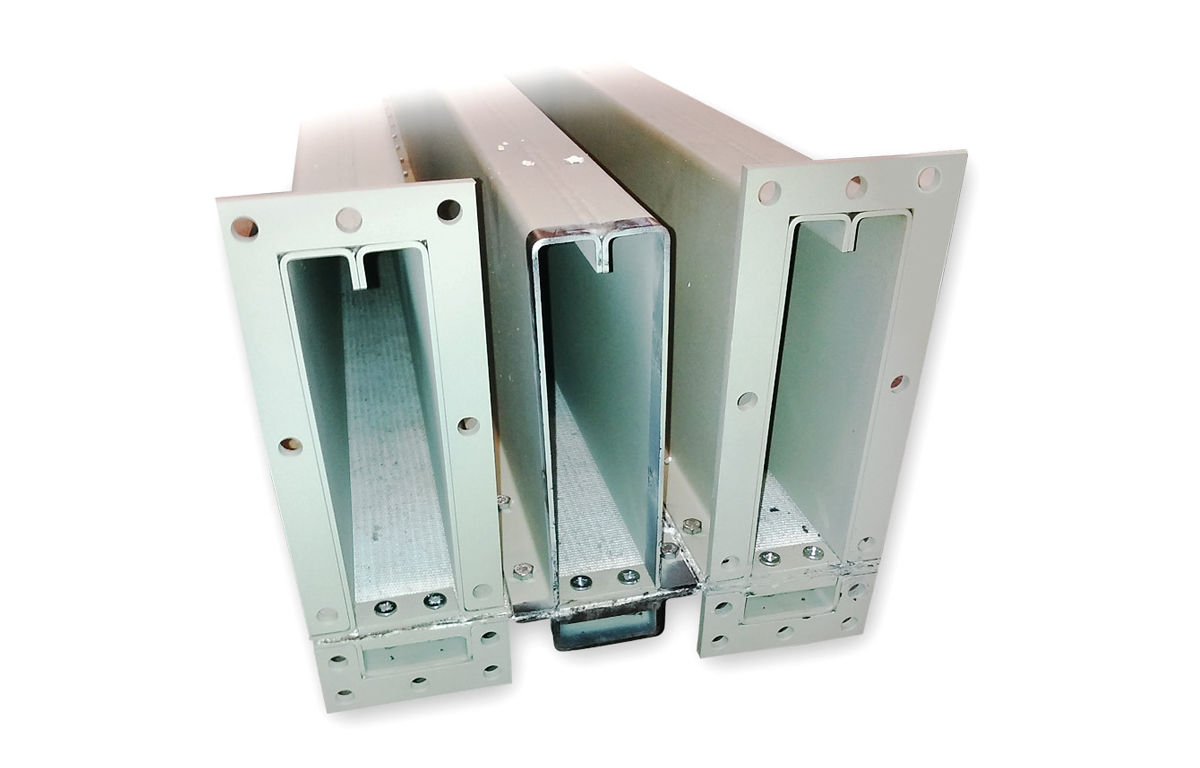

Leavening troughs
for silos and containers with the following parameters:
• Temperature range up to 250oC
• Manufactured sizes:
120, 240, 360 or acc. to individual requirements
• Used materials:
- all sizes as welded construction using a variety of steel
- as a aeration fabric we use different thicknesses of aramid or polyester fabrics
- as a protection against fabric abrasion we use special design of the steel grating
Leavening boxes
for outlets of silos and containers with the following parameters:
• Temperature range up to 50oC
• Manufactured sizes:
200, 300, 400
• Used materials:
- all sizes as welded construction using a variety of steel
- as a aeration fabric we use different thicknesses of aramid or polyester fabrics
- as a protection against fabric abrasion we use special design of the steel grating
We also manufacture troughs and boxes according to individual needs. Any additional information can be obtained by contacting our office.
- Polyester ve Aramid+
The polyester and aramid offered by Energo-Mar are mainly used as aeration fabrics. In addition to polyester and aramid, we also offer felt as an aeration element and other aeration fabrics.
The basic technical parameters and designations of the individual types of polyester are given in the table below:
Designation |
Thickness(mm) |
Produced widths(mm) |
Weight(g/m2) |
Permeability(300 mm H2O m3 / m2 / min) |
Maximum temp. [°C] |
4P |
4,5 ± 0,5 |
100/1200 |
3150 ± 250 |
2 ± 0,5 |
150
|
5P |
5,2 ± 0,5 |
100/1200 |
3400 ± 250 |
||
6P |
6,2 ± 0,5 |
100/1000 |
4100 ± 300 |
||
7P |
7,5 ± 0,5 |
100/700 |
5200 ± 300 |
||
9P |
9,0 ± 0,5 |
100/300 |
5600 ± 300 |
||
4AR |
4,5 ± 0,5 |
100/1200 |
3300 ± 250 |
220 |
|
5DM |
5,0 ± 0,5 |
100/1200 |
3400 ± 300 |
180 |
|
3DM-T |
2,0 ± 0,3 |
100/300 |
2800 ± 300 |
||
4P-B |
4,5 ± 0,5 |
100/1000 |
3200 ± 250 |
150 |

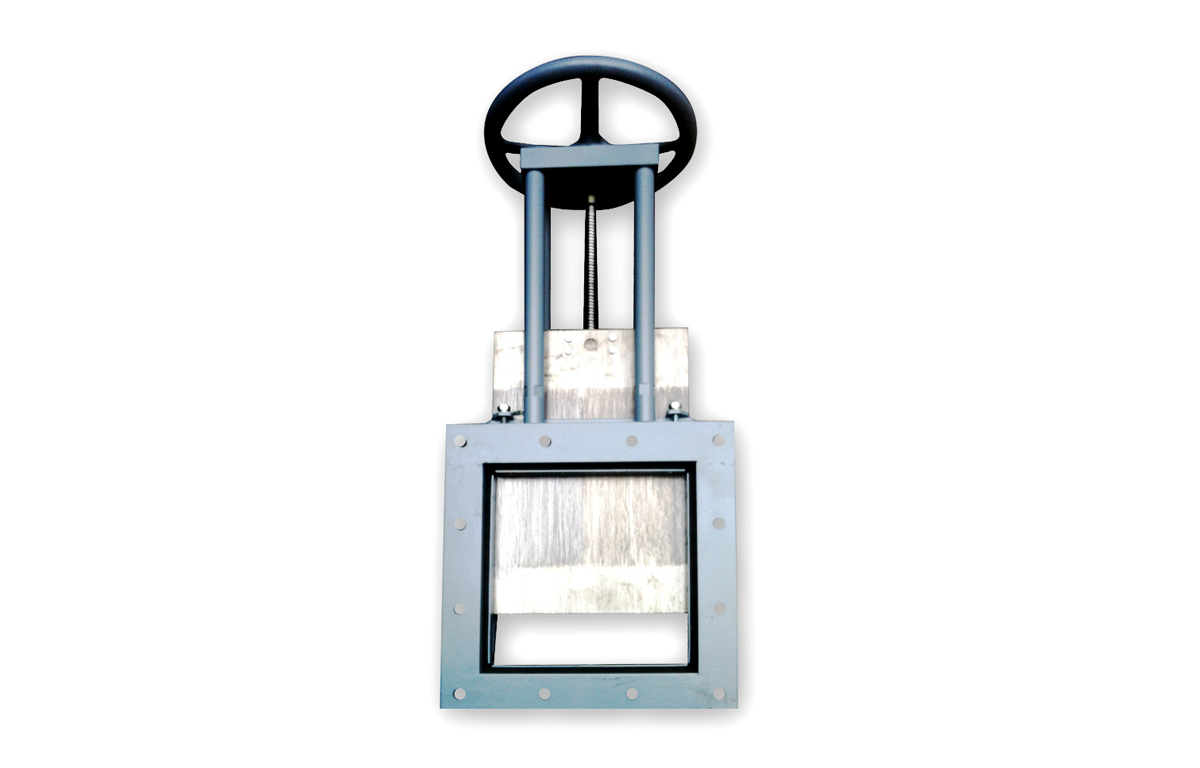

- Slide gates+

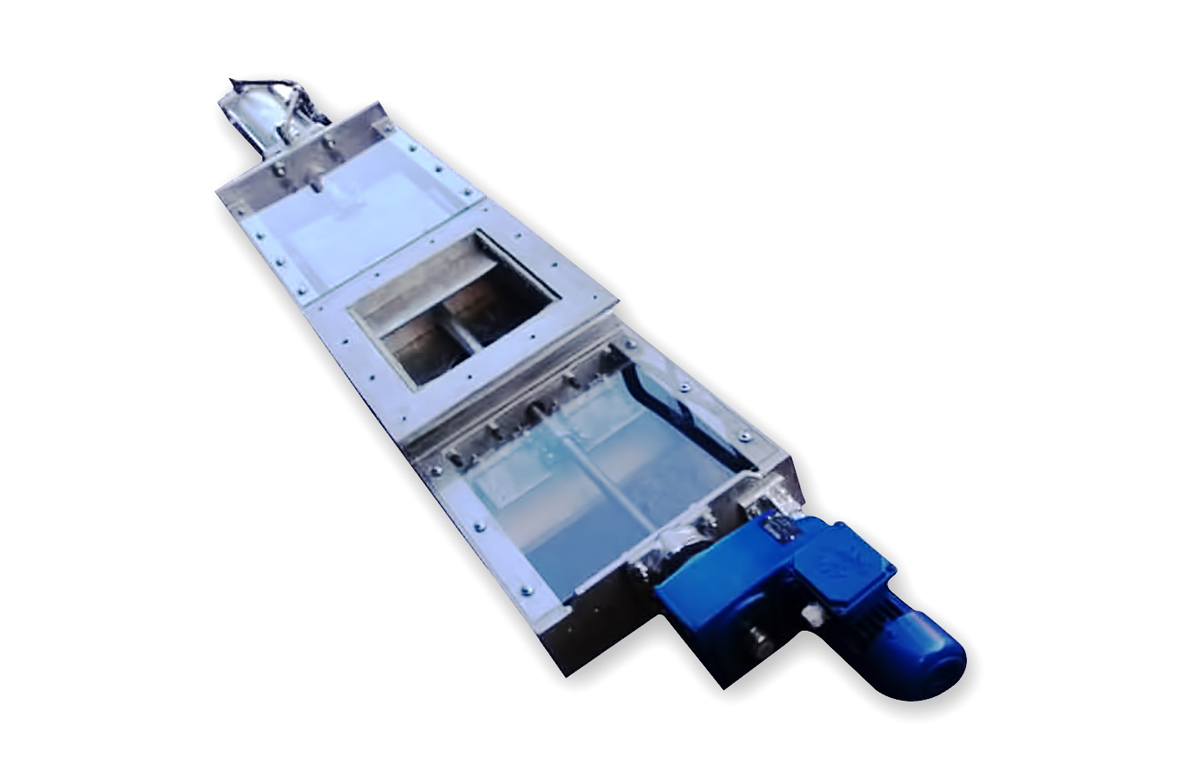

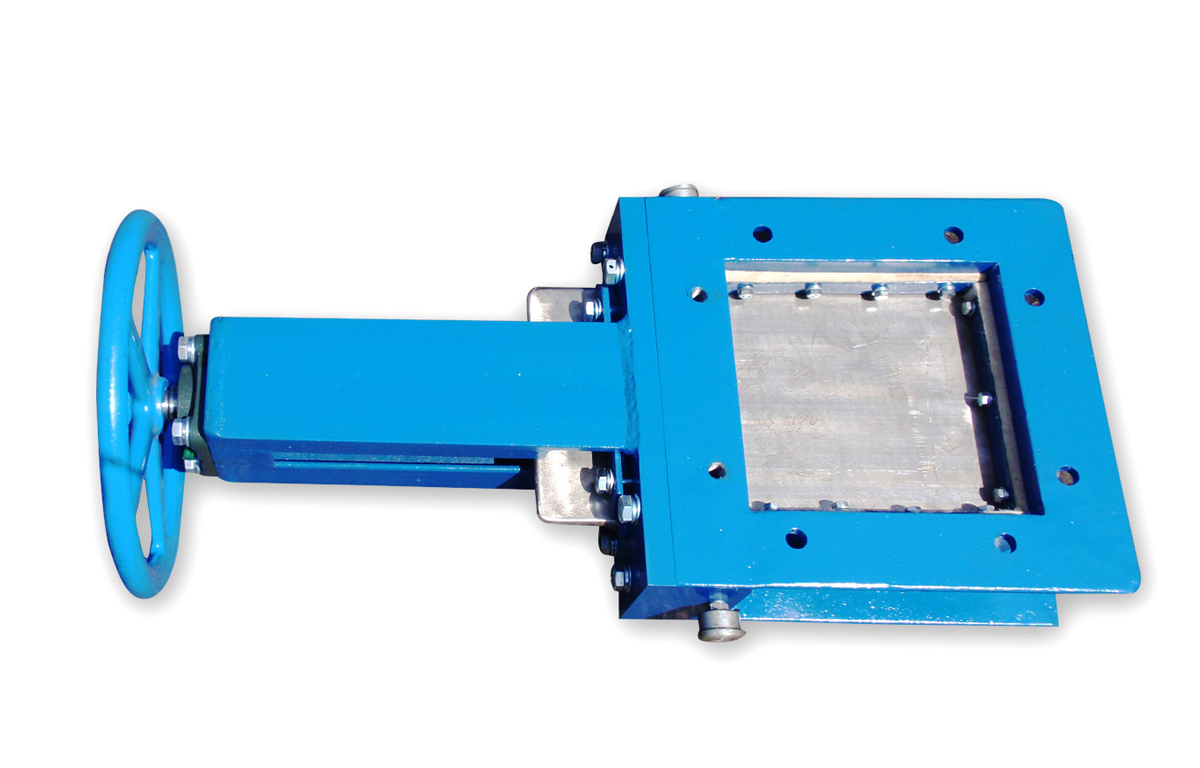

The Energo-Mar company offers slide gates with the following parameters:
Temperature range: up to 300oC
Manufactured sizes: from 150mm x 150mm to 500mm x 500mm
Used materials:
- all sizes as welded constructions using a variety of steel
- dimensions: 200mm x 200mm and 300mm x 300mm as cast iron or aluminum
Applied drives:
- manual
- gearmotor

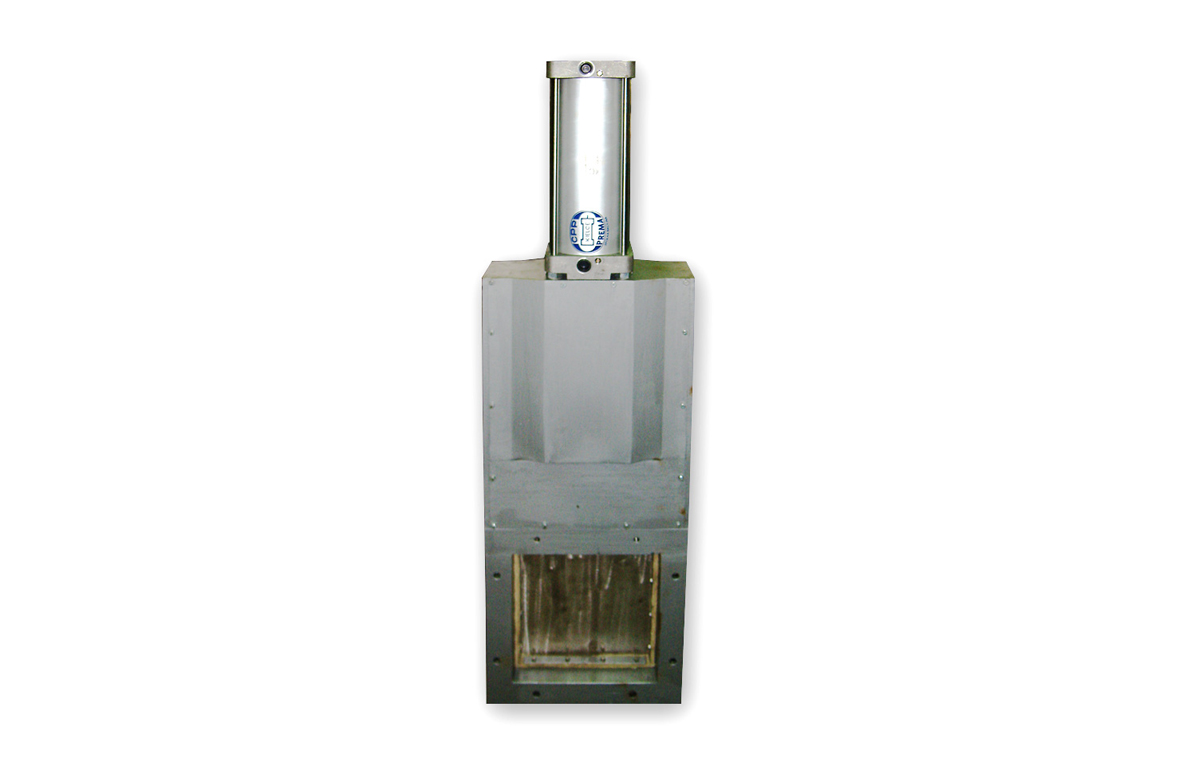

- pneumatic actuator
There is a possibility to perform slide gate according to individual requirement. Any additional information can be obtained by contacting our office.

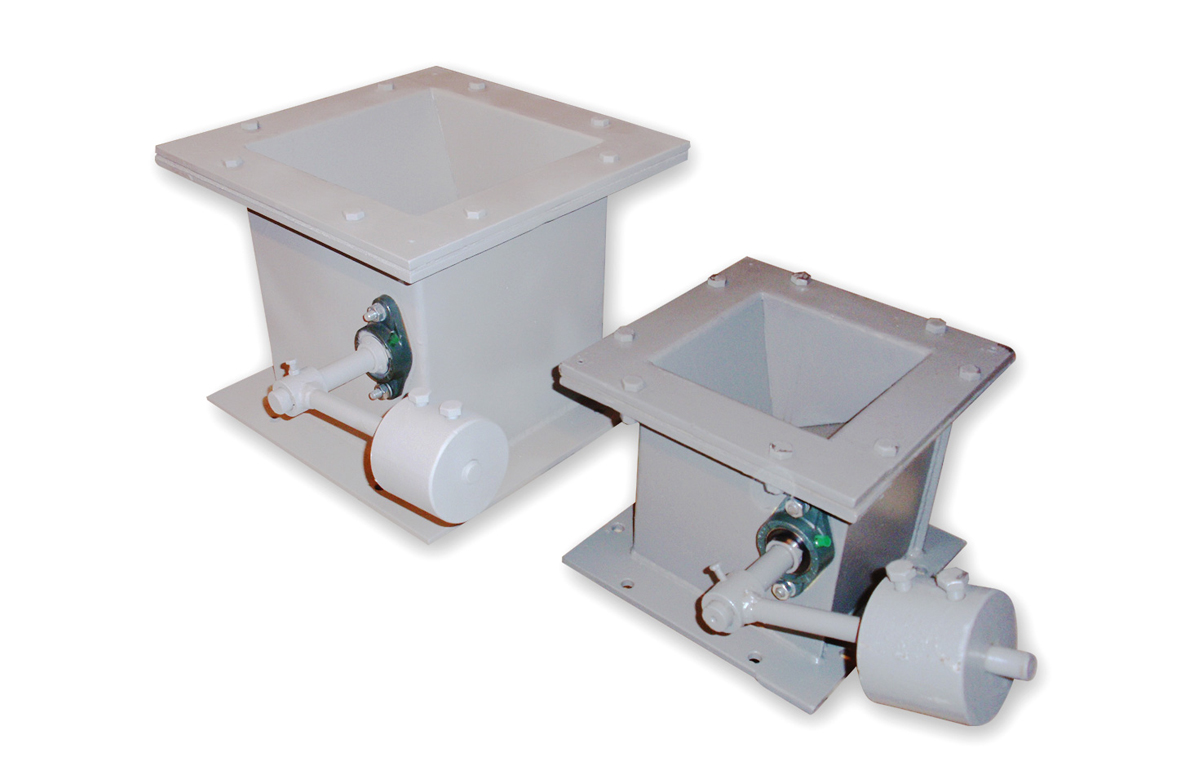

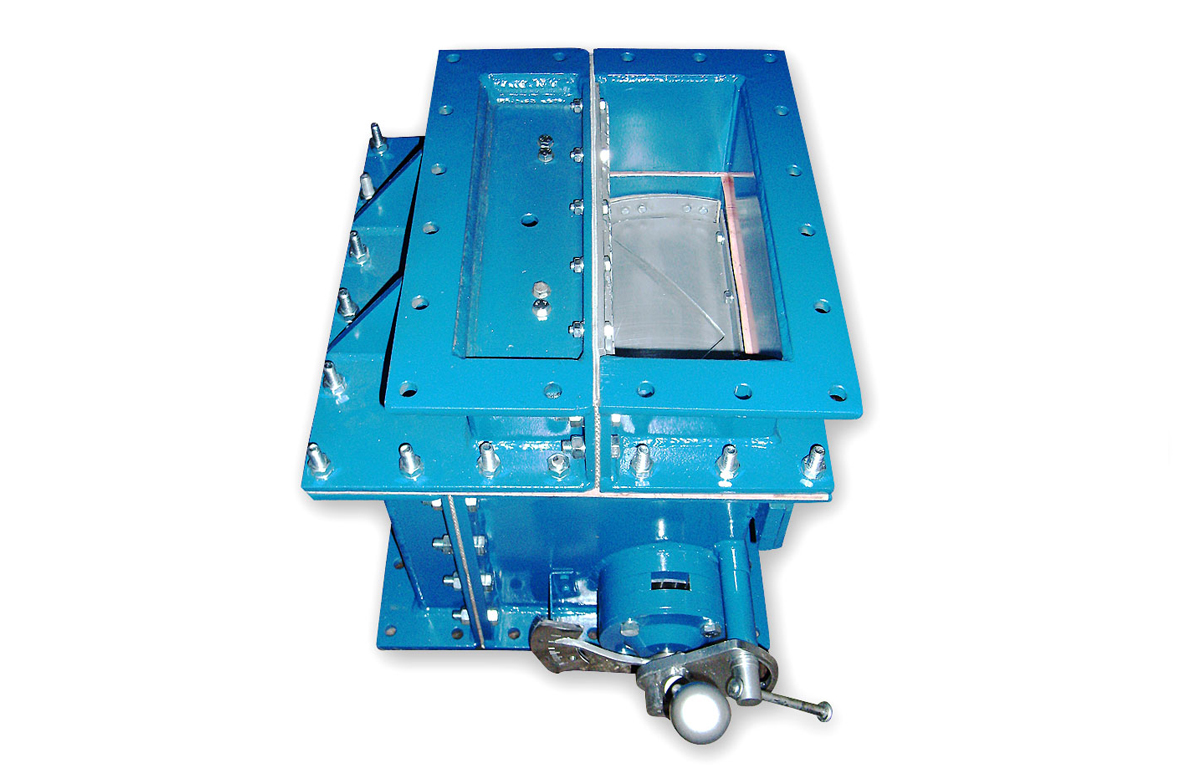

- Flap gates+

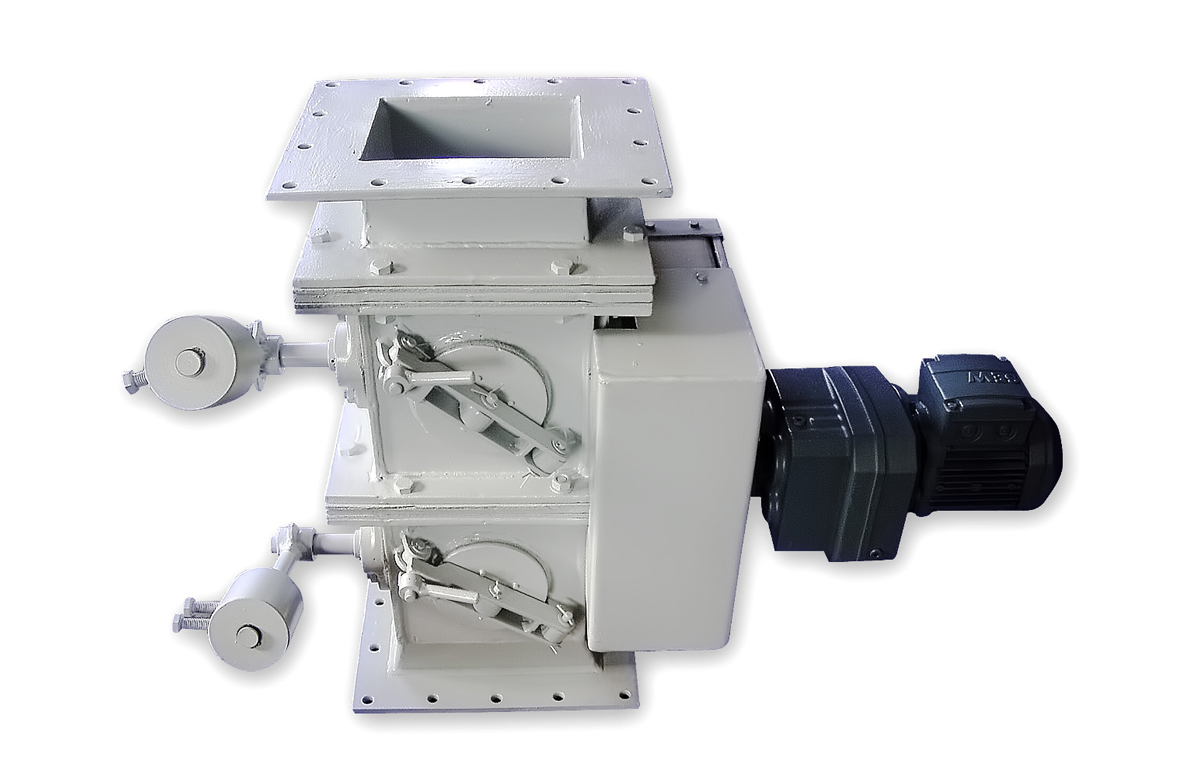

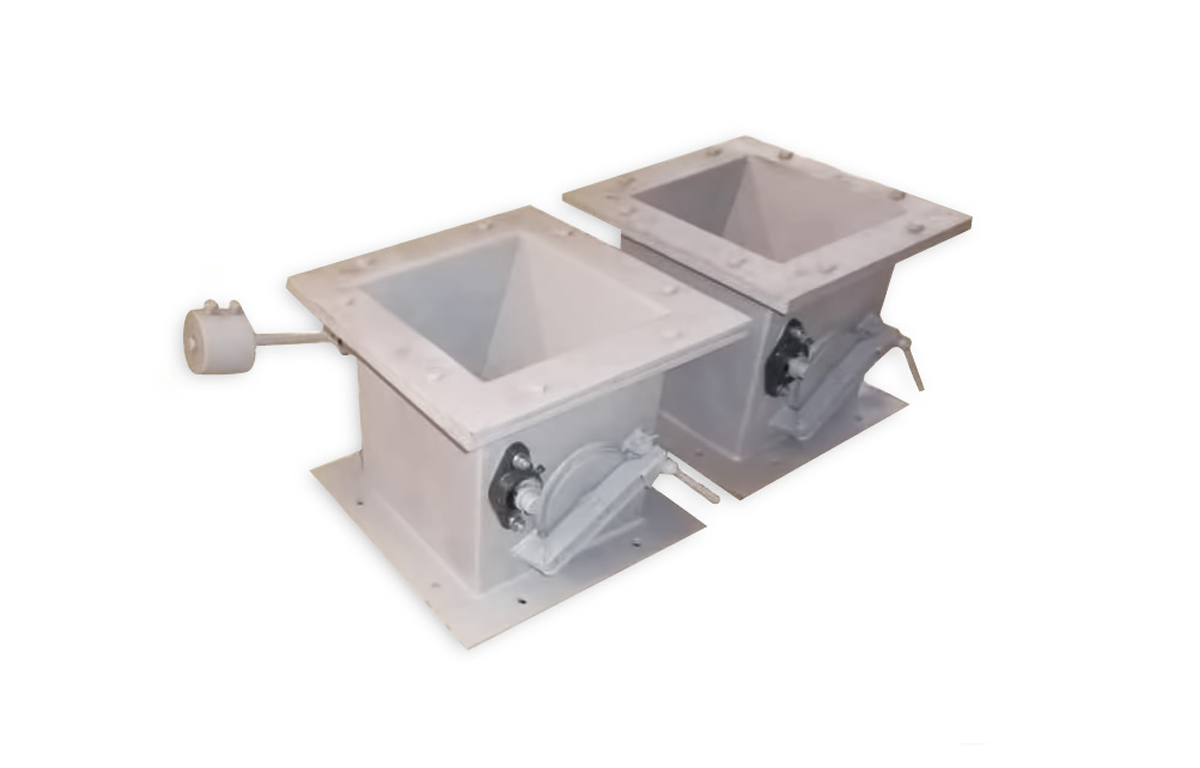

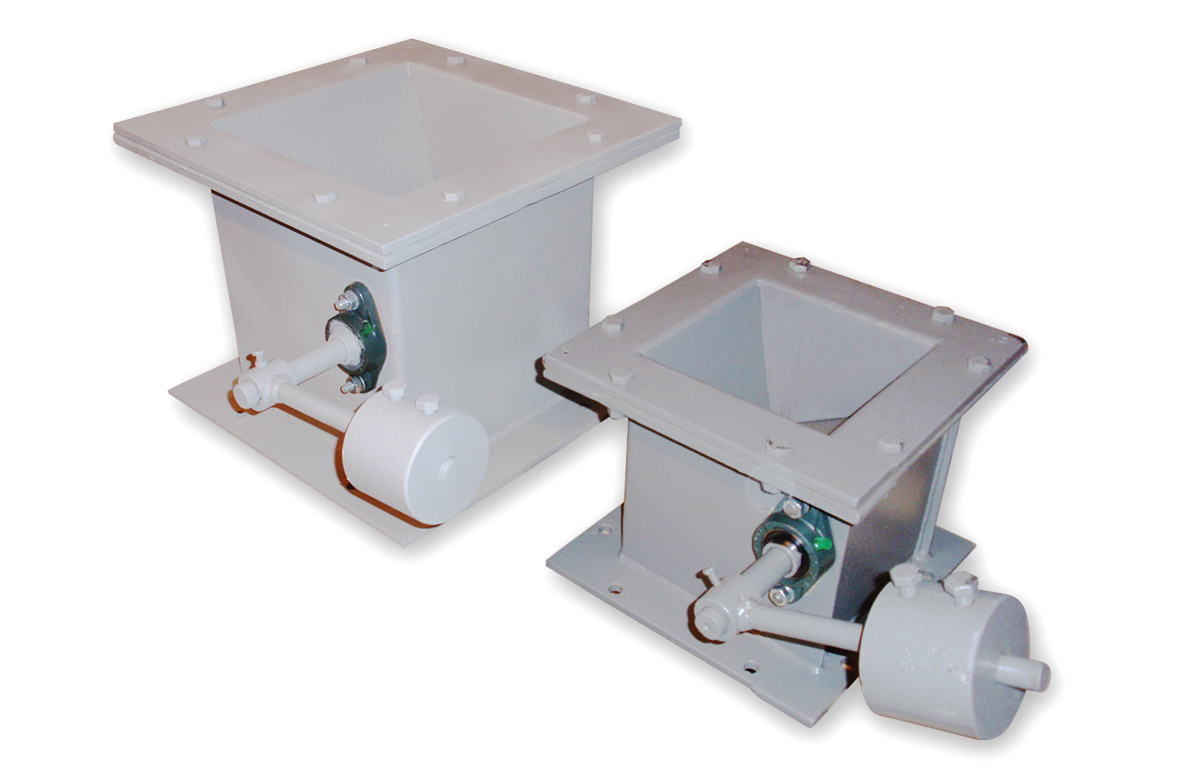

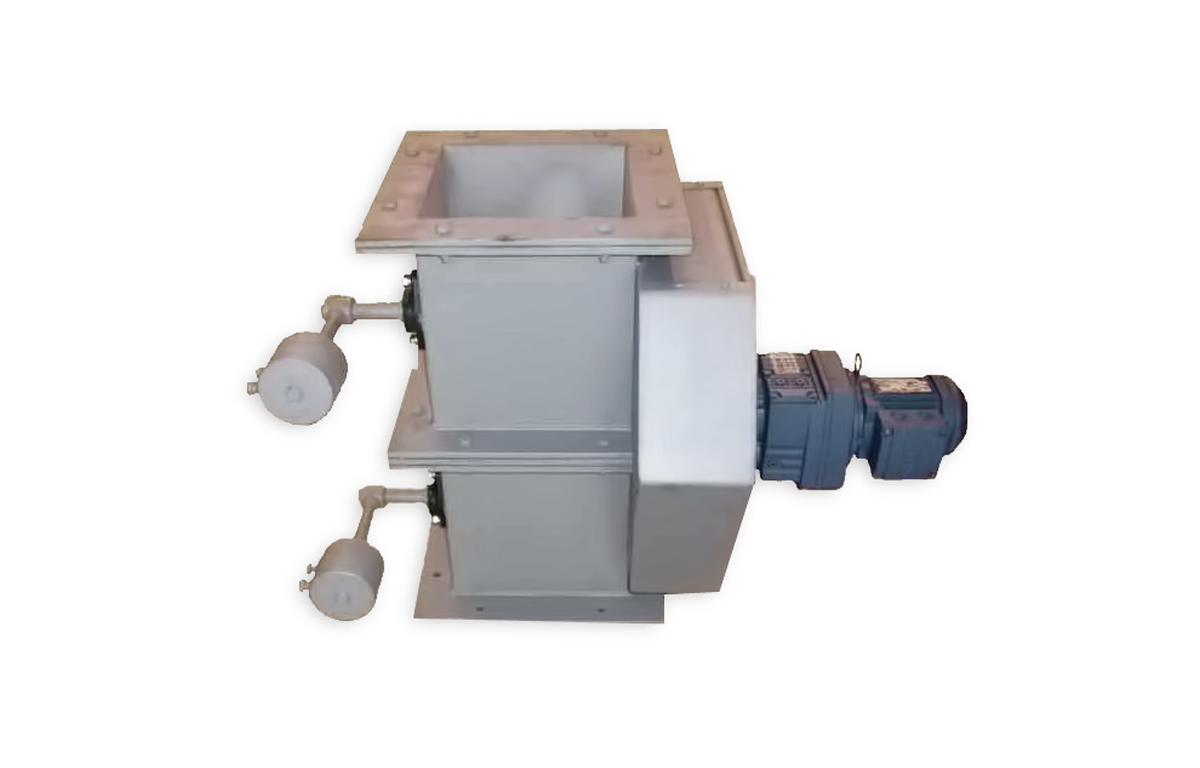

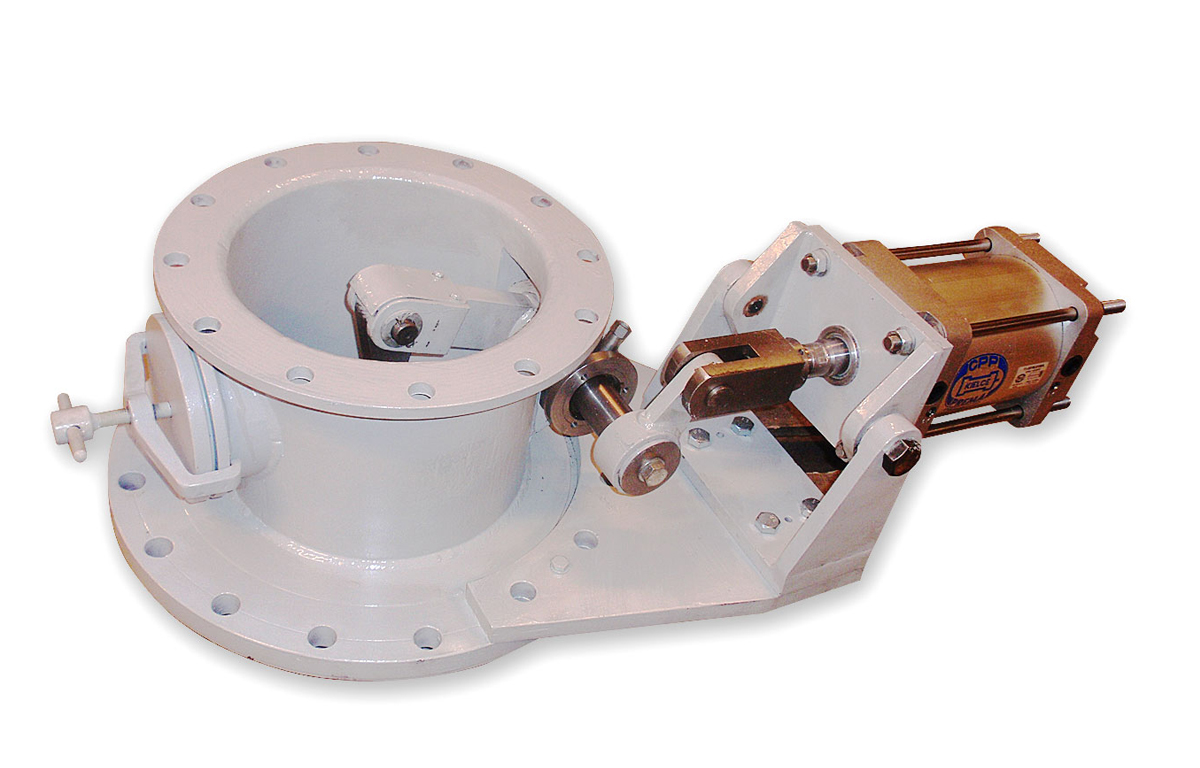

The Energo-Mar company offers flap gates ( flickering flaps) with the following parameters:
Capacity: up to 130m3/h
Temperature range: up to 300oC
Manufactured sizes:
- DN200 and DN300
- from 200mm x 200mm to 500mm x 500mm
Used materials:
- all sizes as welded constructions using a variety of steel. There is a possibility to perform flap gate according to individual requirement.
Any additional information can be obtained by contacting our office.

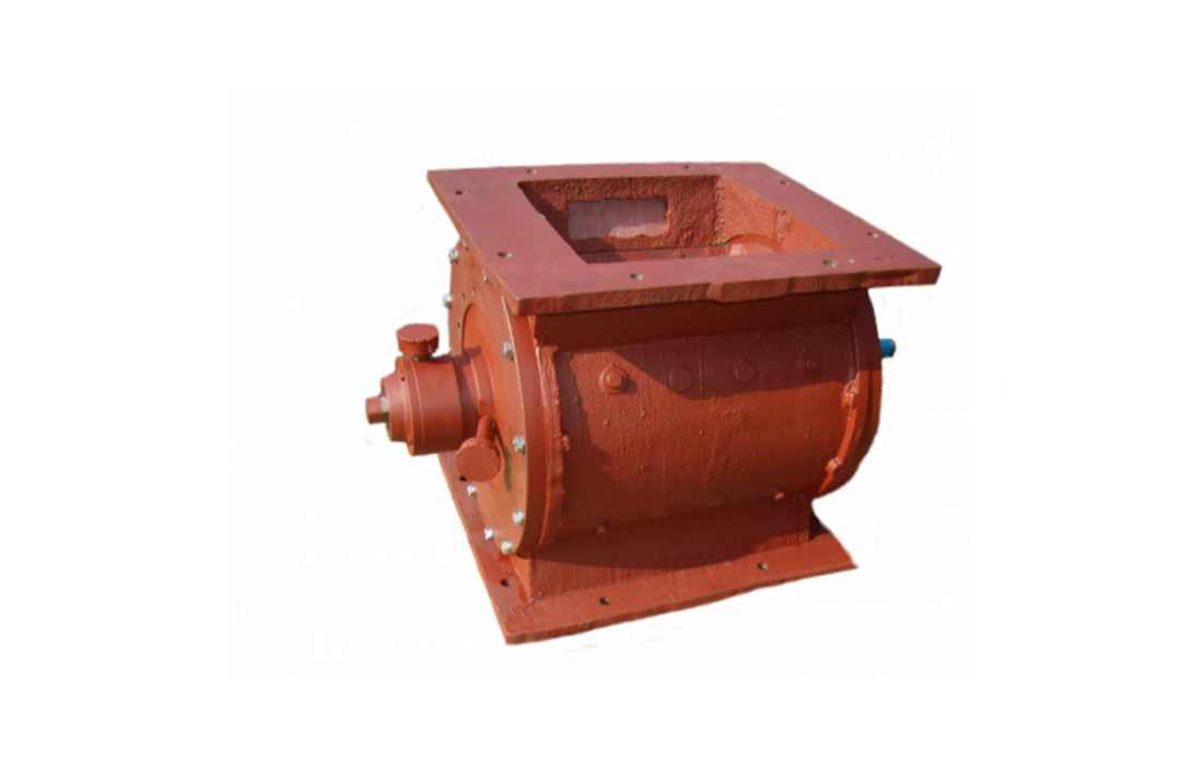

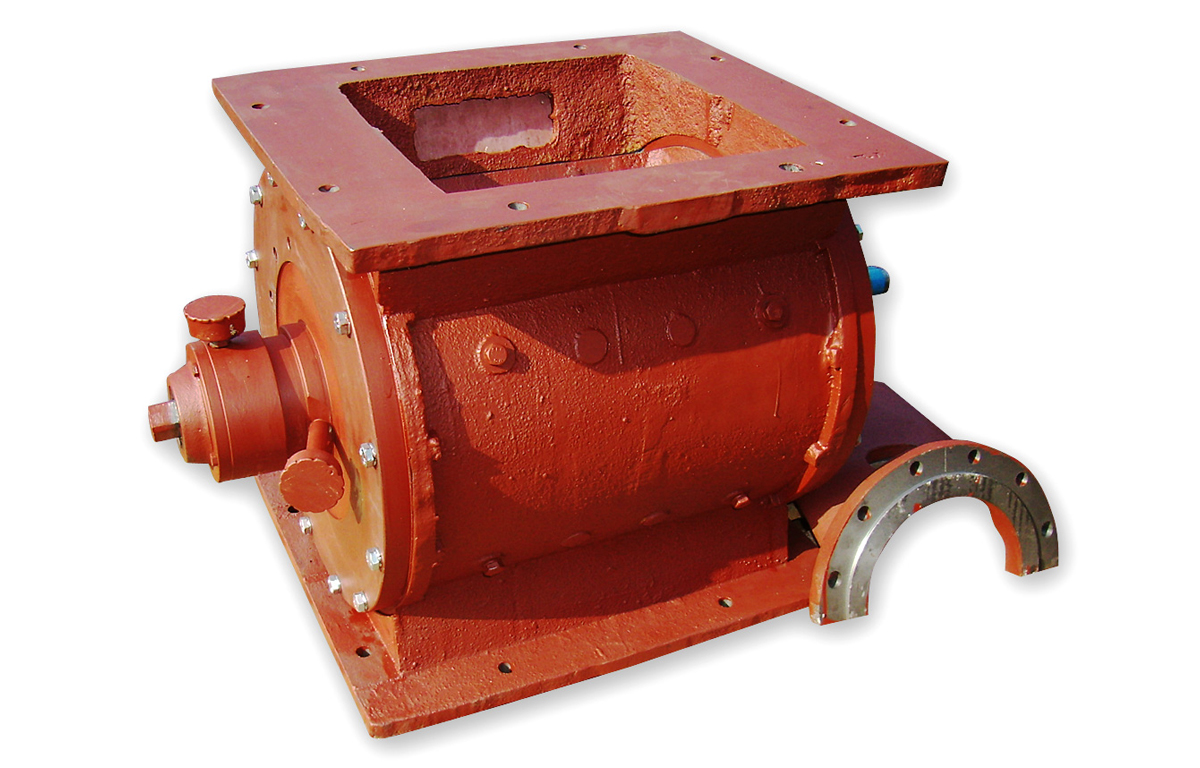

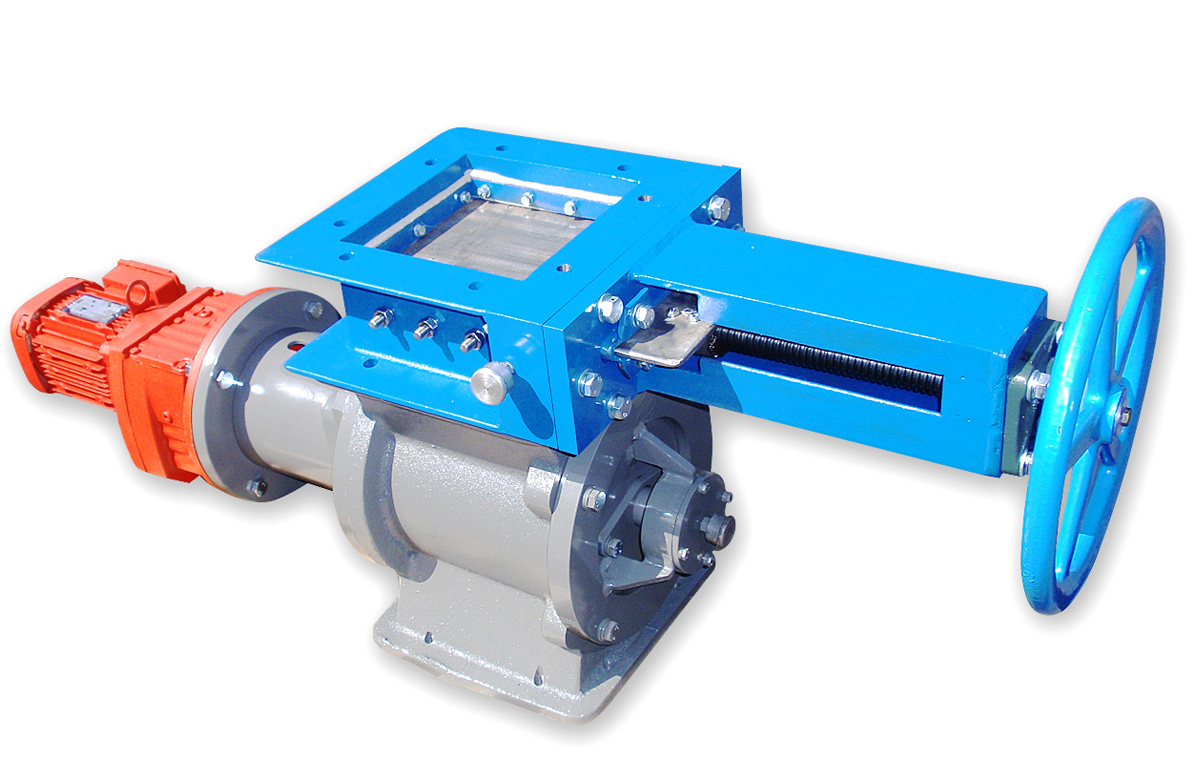

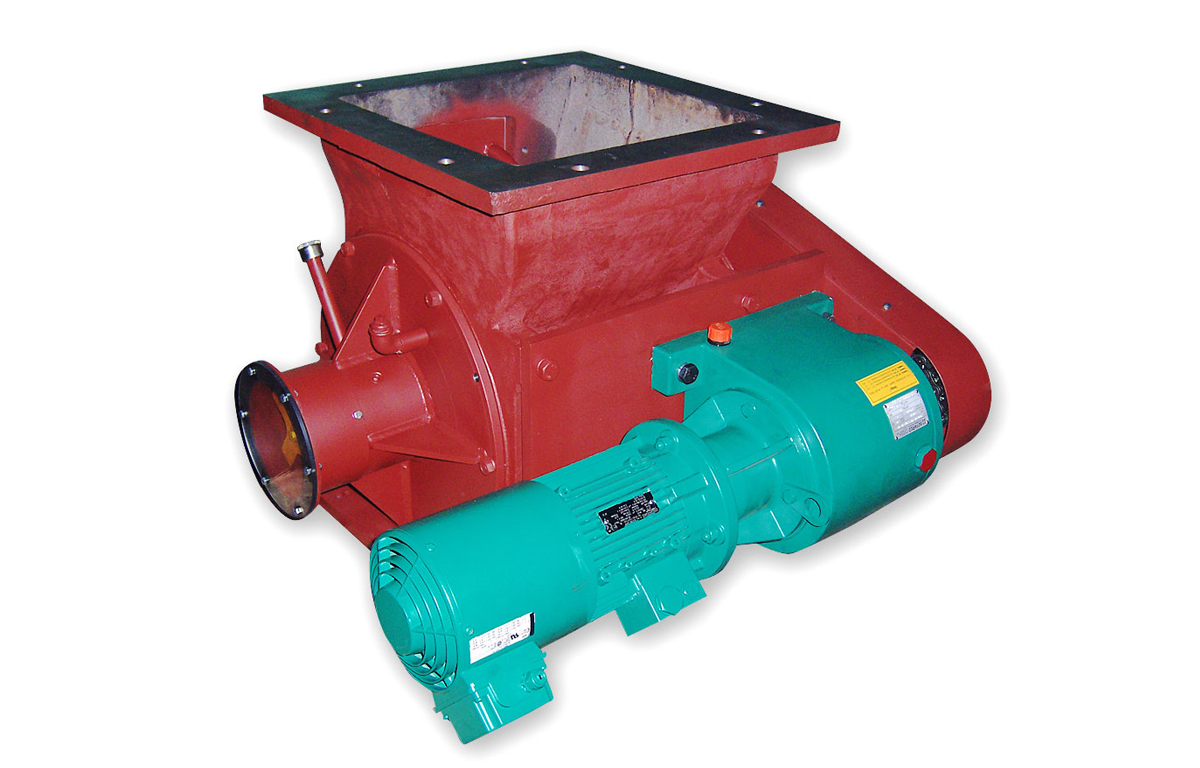

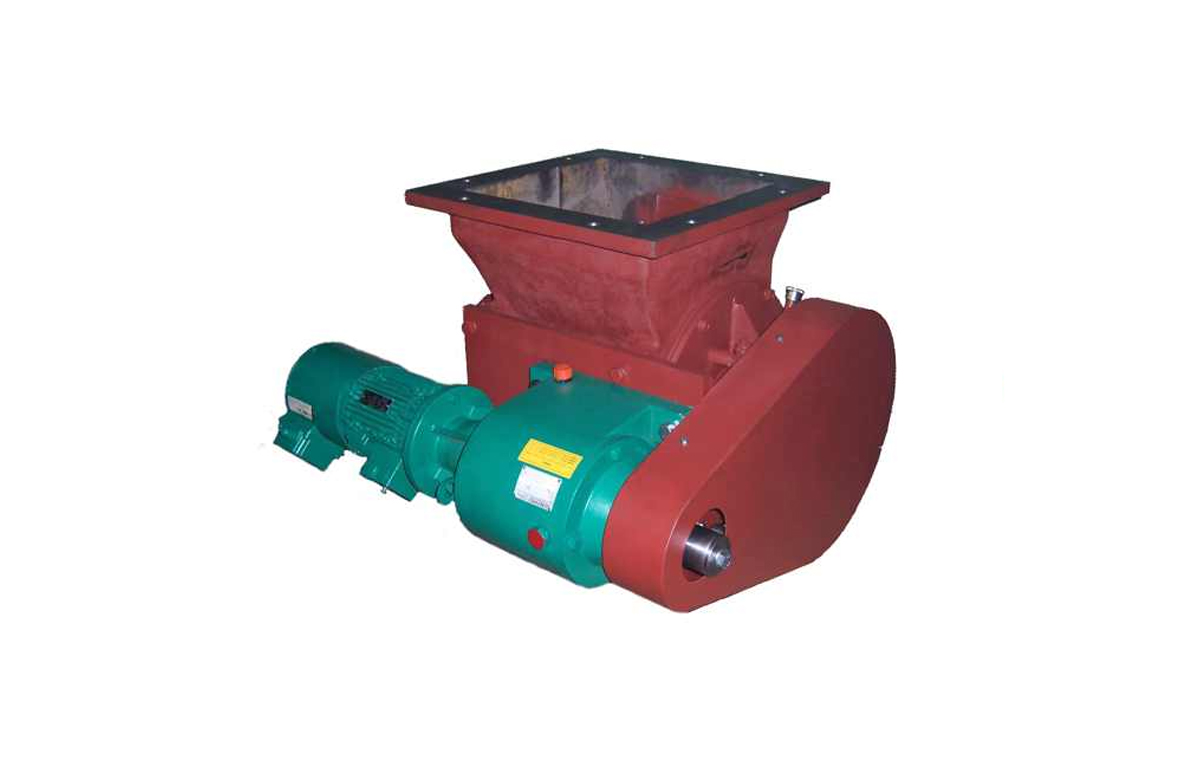

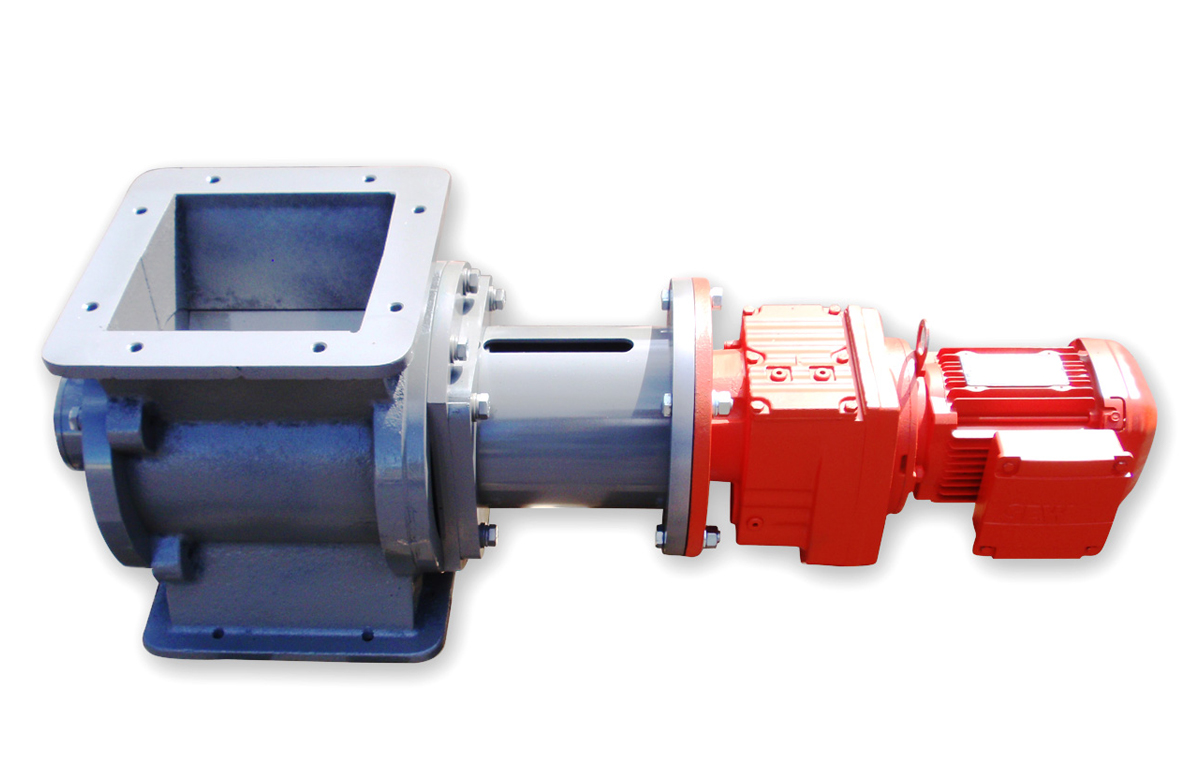

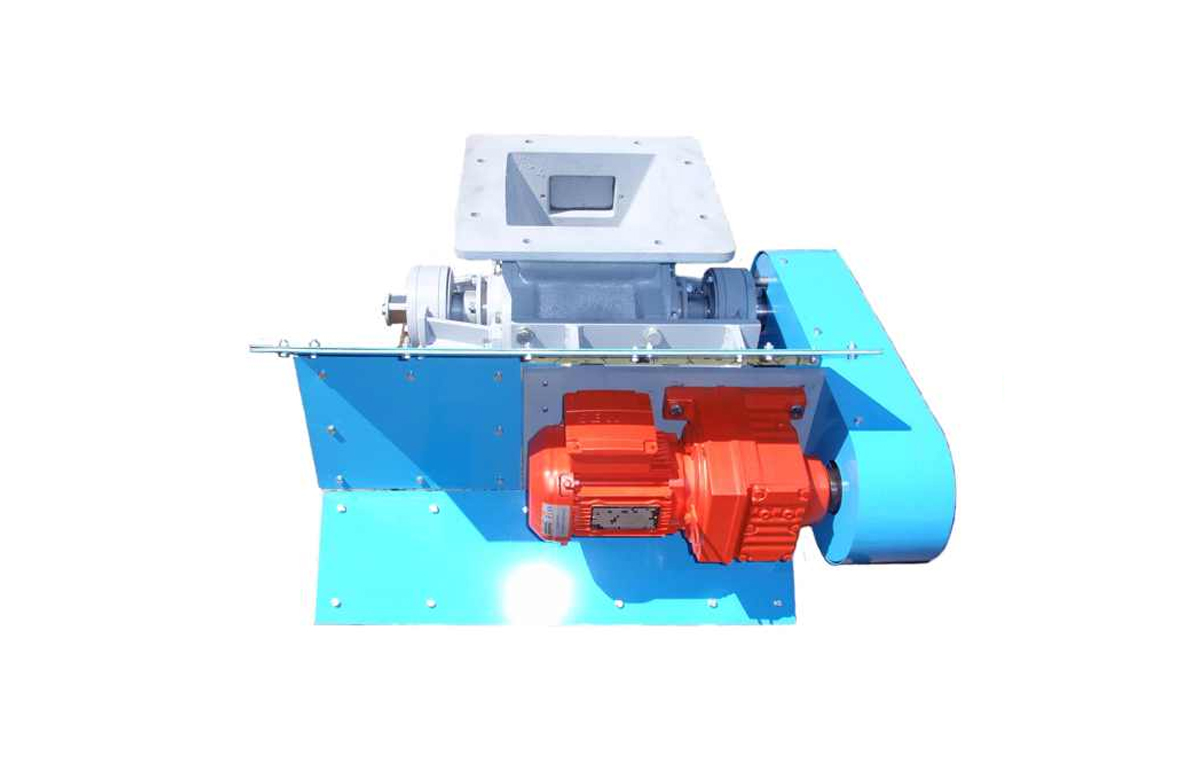

- Rotary valves+

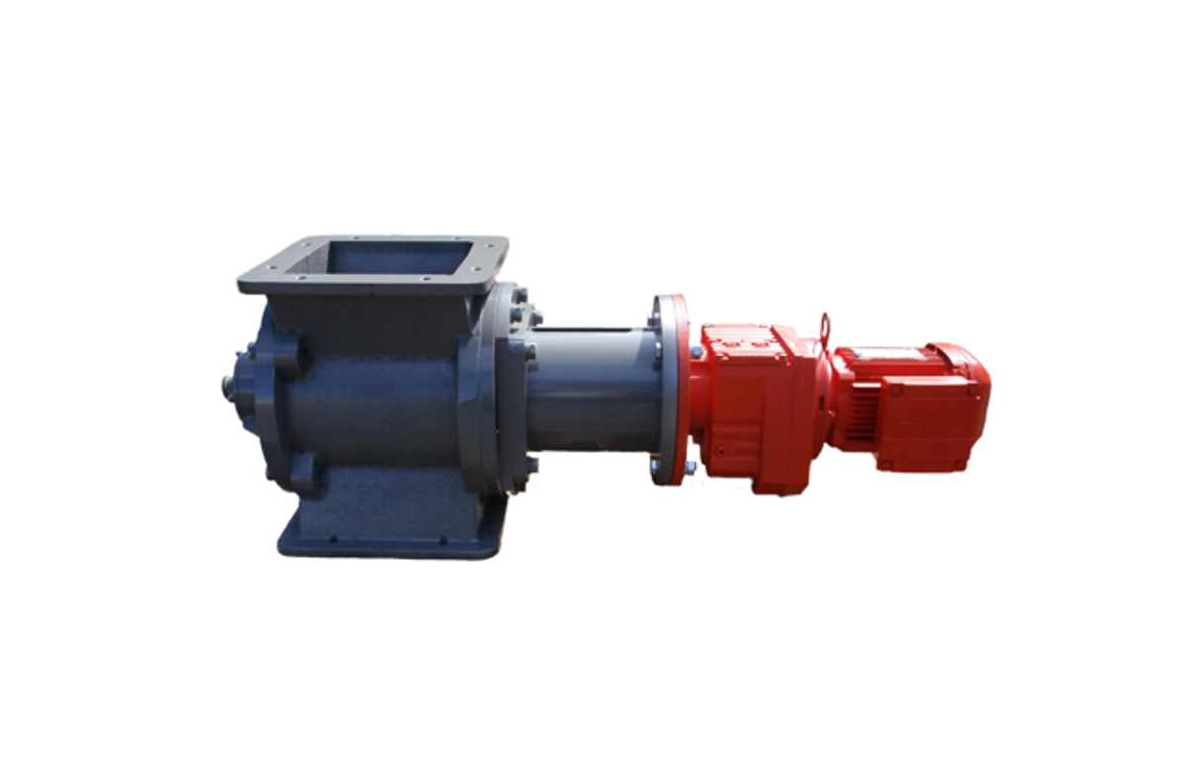

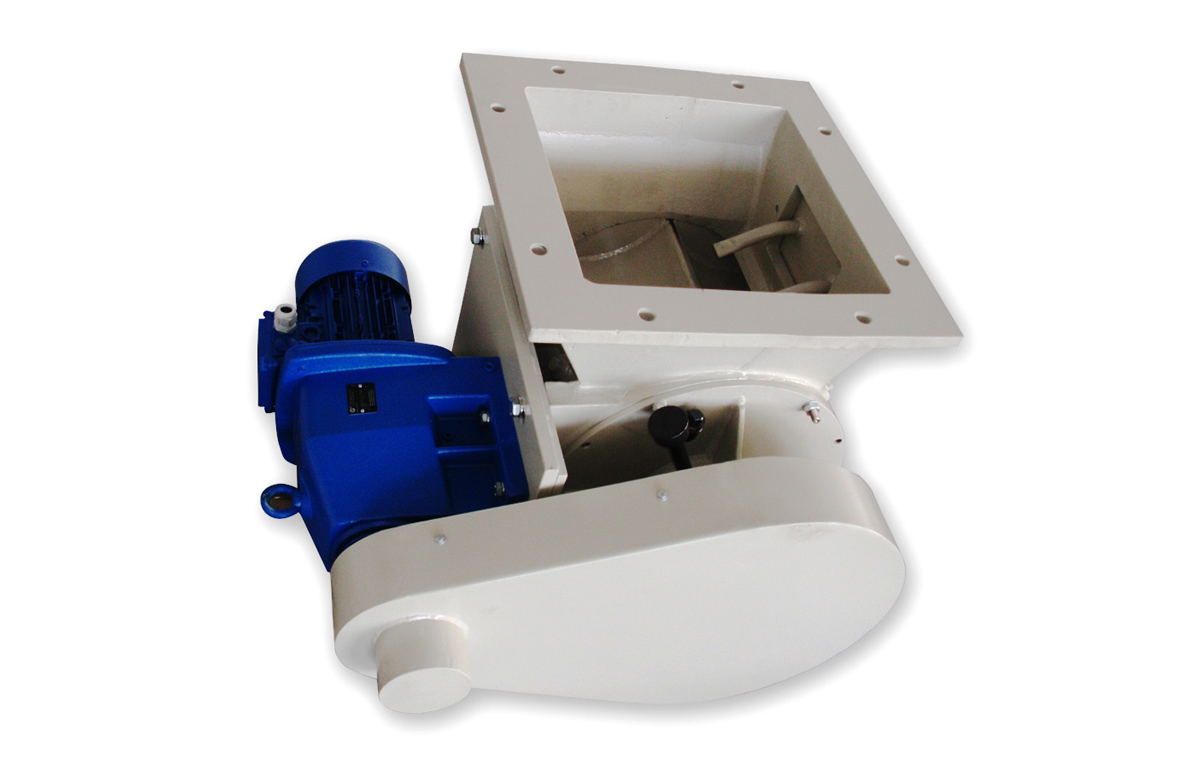

Energo-Mar Company offers rotary valves on the following parameters:
• Capacity up to 2503/h
• Temperature range up to 300oC
• Produced sizes from DN70 to DN500
• Materials used:
- all sizes as welded constructions using a variety of steel
- to the size of 400 there is an opportunity to made of ZL200
• Used drives by
- flexible couplings
- geared motors flanged
We also perform rotary valves according to individual requirements. There is a possibility to supply rotary valves ATEX certified according to EU directive 94/9 / EG. Additional information may be obtained by contacting our office.
